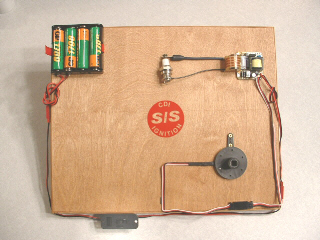

standard cdi system
Located in Northwest OHIO

buzz coil cdi system




Manufacuring CDI systems and Accessories


When you are ready to order click here to go to the order page
You are not required to join PayPal to make a purchase or use your credit card.


SATRA DISTRIBUTOR PARTS
SNOW TANDEM ENGINE PARTS
Snow Engine and Satra Distributor Parts

SPECIFICATIONS:
Recommended operating voltage - 4.8 volts DC
Operating voltage range - 4.2 to 6.0 volts DC
Requires external triggering device
Futaba 3 wire connector:
Black = Battery Ground
Red = Battery Positive
White = Logic HIGH output

NOTE: Never apply voltage to the White wire
MAXIMUM SPARKS PER MINUTE = 12,000

IC ignition systems do not have auto advance timing control

CDI IGNITION TEST PROCEDURE


CDI ASSEMBLY and accessories
cdi assembly


NEW CDI CHANGES

All of our new CDI systems have a timing-light LED.


Navigation



S/S Machine & Engineering LLC
16940 County Road T
Fayette, OH 43521

ph. (419) 452-6042

email: rsholl@cncengines.com

Lee Hodgson 9 cyl radial
9 CYLINDER CDI IGNITION
Complete CDI ignition system for the
Lee Hodgson 9 cylinder radial engine.

Distributor Timing and Set-Up

INCLUDES:

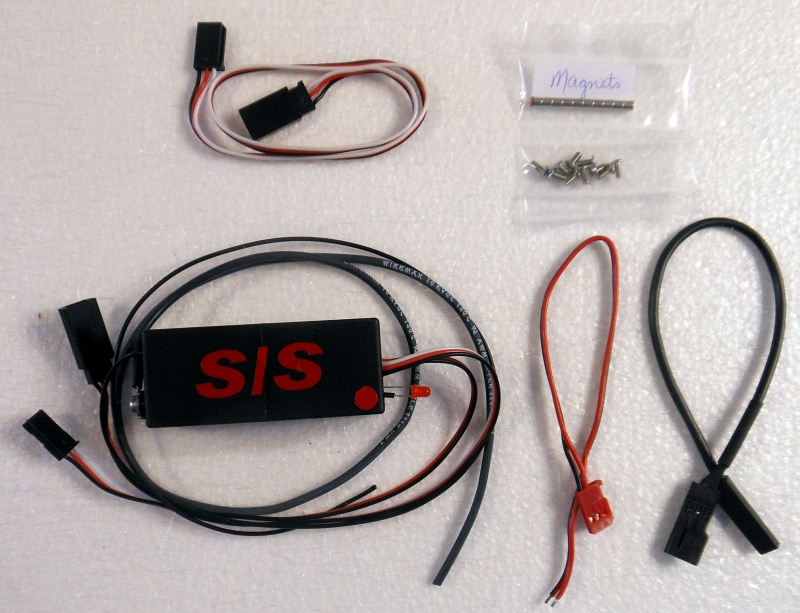

  1.  CDI ignition module shown above
  2. Hall sensor with Futaba connector
  3. 10 magnets - 1/8" dia by 1/8" long (9 for distributor and 1 spare)
  4. 10 #2-56 stainless steel machine screws for distributor (we also have M2.5 x 4 machine screws)
$95.00


9 cylinder wire set

Completely assembled wire set for
Lee Hodgson 9 cylinder radial engine.
$70.00


Lee Hodgson 9 cylinder CDI parts kit

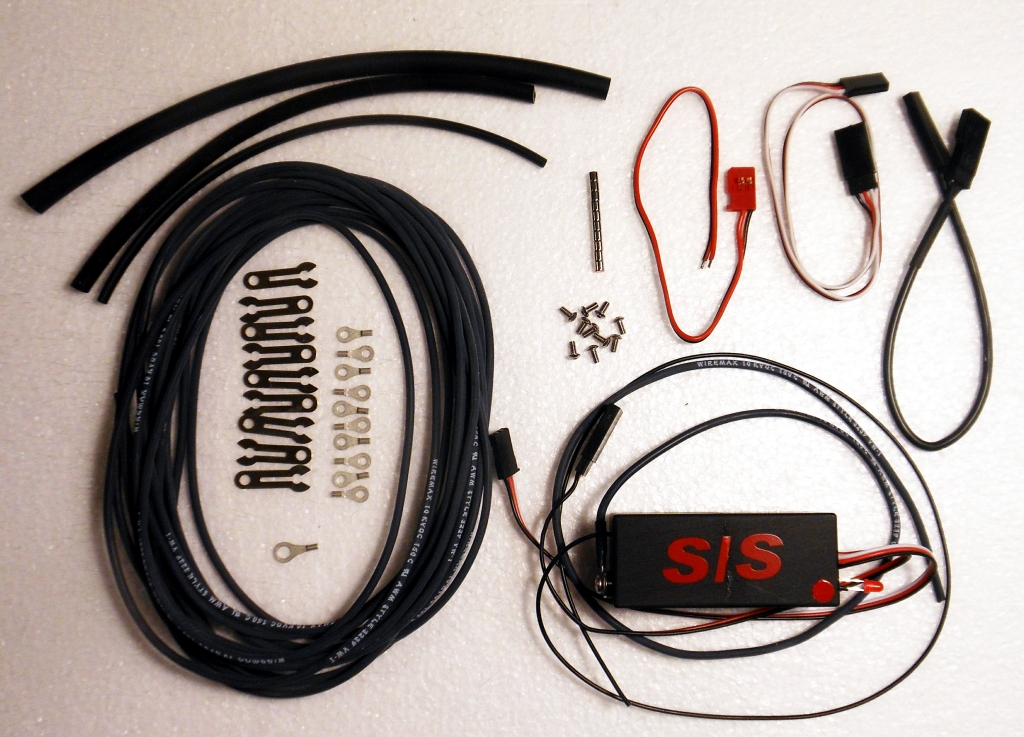

9 CYLINDER CDI IGNITION KIT
Includes:
  1. CDI ignition module
  2. Plastic enclosure
  3. Hall sensor
  4. 10 magnets
  5. 10 ring terminals for #2 stud
  6. 10 #2-56 or M2.5 stainless steel machine screws
  7. 9 spark plug clips, tubes and heat shrink
  8. 18 feet of 10 Kv spark plug wire
  9. 18 inches #22 black stranded ground wire
  10. 1 ring teminal for #6 stud (ground wire to engine)
$135.00


BareBonz cdi-NO timing light
BareBonz CDI
$45.00
This is a minimal parts count CDI for single cylinder slow RPM engins. It was designed primarily to use points for triggering but can use a hall sensor input. CAUTION: This system does not include the extra circuitry to protect the hall sensor. 6 volts is the absolute maximum voltage and the preferred voltage is from 4.5 to 5 volts. We are offering 2 options: A hardware package and a battery holder with power wires and includes the hardware package. The battery holder and power wires DO NOT have connectors installed. The BareBonz CDI is rated for a maximum of 3,000 rpm on 5 volts and at very slow rpm draws very minimal current.

Hardware Pack Parts Kit
Hardware kit $1.00
Parts Kit $6.00

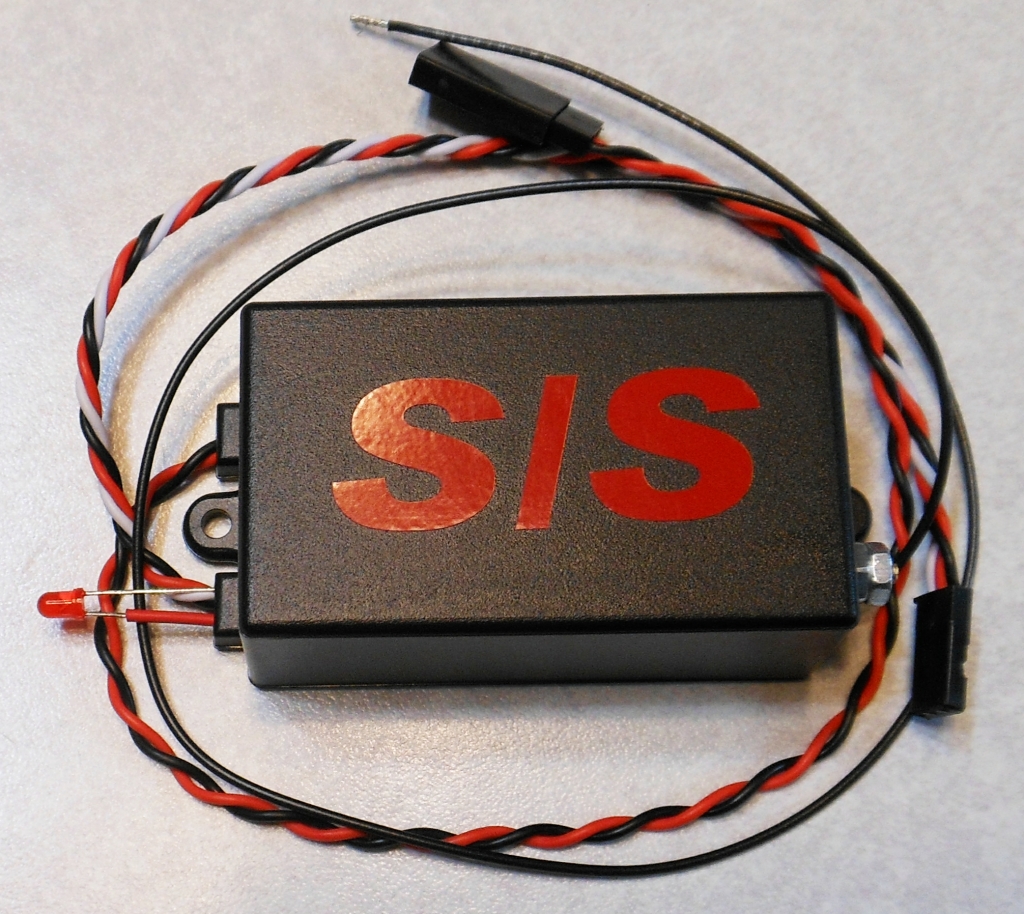

single spark cdi with timing light
SINGLE SPARK CDI WITH TIMING LIGHT
This is our new version CDI which is manufactured in the USA. Our new version uses a #4 stud and nut to attach the spark plug wire. The transformer is manufactured here in Ohio and all of our CDI's are now hand assembled in our shop here in NW Ohio. This new CDI was designed from the ground up to operate as efficiently as possible. It is limited to approximately 7,000 RPM. 6 volts is our maximum voltage and will operate at its most efficient at RPM's less than 1,000 using a 4.2 power source.
Includes 18" ground lead and 1 foot 10 Kv spark plug wire
LED is mounted at enclosure and can be extended
with optional extension LED
Hall Sensor and spark plug wire end are not included
$70.00


magnum cdi with timing light
MAGNUM CDI WITH TIMING LIGHT
This is our new version CDI which is manufactured in the USA. Our new version uses a #4 stud and nut to attach the spark plug wire. The transformer is manufactured here in Ohio and all of our CDI's are now hand assembled in our shop here in NW Ohio. The MAGNUM CDI is designed for multi cylinder and high speed enignes.
With 6 volts input it is capable of aproximately 30,000 RPM
The current draw on the MANGNUM CDI can be 3 times that of our Standard CDI
Includes 18" ground lead and 1 foot 10 Kv spark plug wire
LED is mounted at enclosure and can be extended
with optional extension LED
Hall Sensor and spark plug wire end are not included
$70.00


Dale Detrick T brass
Complete CDI Ignition system
for many single cylinder engines
up to 7,000 RPM.
THIS IS A BOLT ON FOR THE
BRASS MODEL "T" ENGINE
BY DALE DETRICH
INCLUDES:
  1. single spark cdi module
  2. hall sensor and 1/8 dia. X 1/8" long magnet
  3. battery holder with 4 AA - 700 ma NiCad batteries
  4. ON - OFF slide switch with charge jack
  5. overnight wall charger - 110 volt
  6. spark plug wire assembly with flat spark plug clip
  7. ground wire with ring terminal for #6 stud
$110.00

Above System Less Batteries and Wall Charger
$85.00

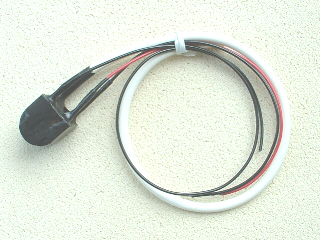

spark coil - cdi
High Voltage Spark Coil for CDI type ignition.
This coil requires a minimum of 250 volts of primary voltage.
$15.00

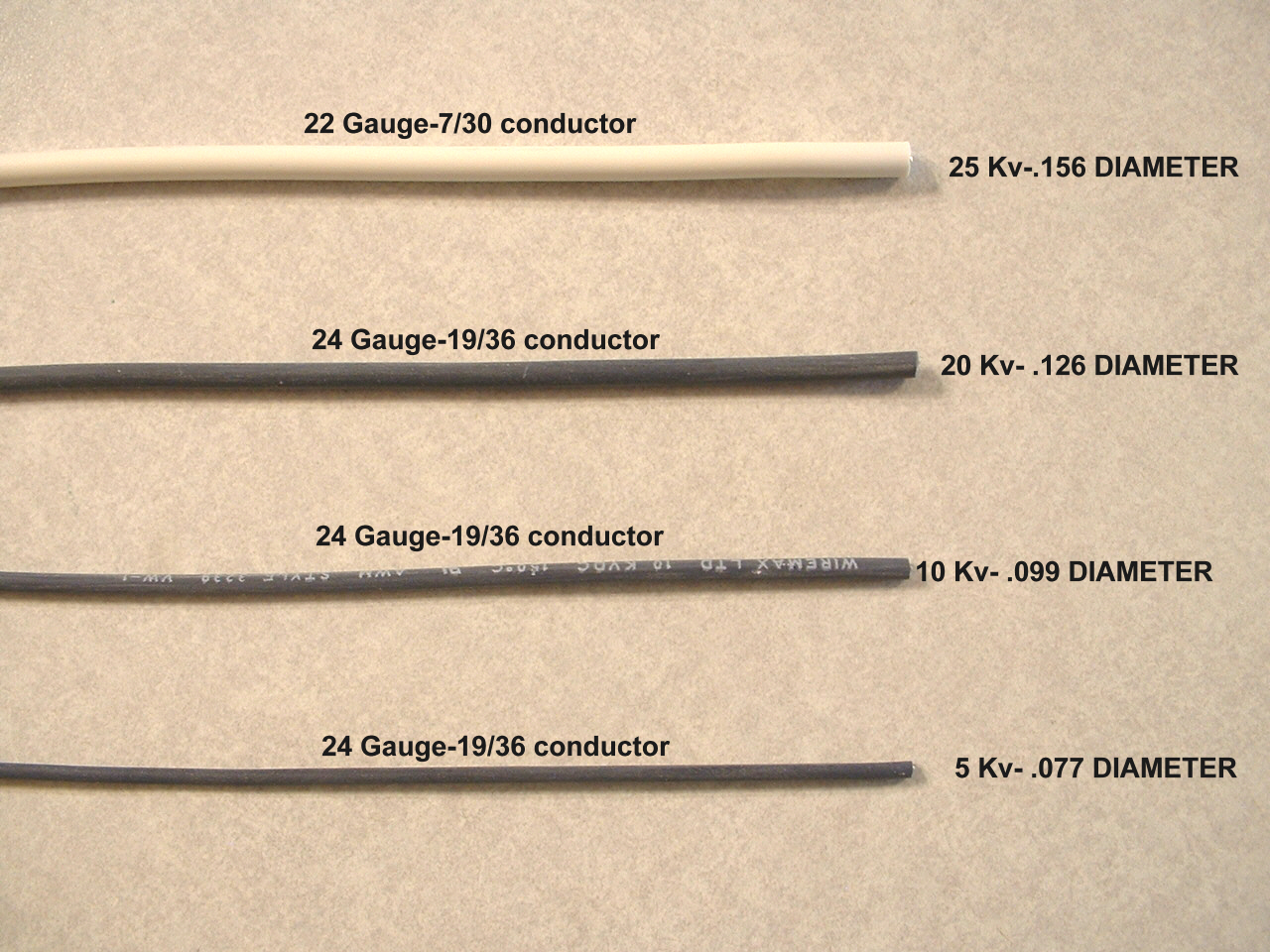

silicone hv wire

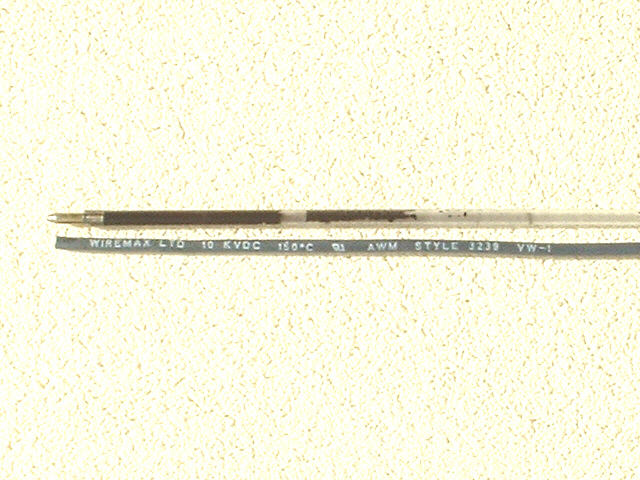

HIGH VOLTAGE SPARK PLUG WIRE
All black wire is Awg. 24 (19/36) SPC
White wire is Awg. 20 (19/30) SPC
All of these wires have silver plated strands


hall sensor for IC ignition
HALL SENSOR FOR ALL IGNITION SYSTEMS
Futaba connector
$8.00



CDI pulser module
TESTER FOR CHECKING CDI POWER BOARD
Connect in place of the hall sensor to trigger
the CDI - adjustable from approximately
400 to 20,000 pulses per minute
$15.00



Hall tester and timing light
HALL SENSOR TESTER AND TIMING LIGHT
Includes:LED and BUZZER to indicate
hall sensor position.
$20.00
Requires battery pack with Futaba female connector
Use battery pack from CDI with Futaba connector



NON CDI IGNITION SYSTEMS


POINT SET TUNGSTEN CONTACT POINTS
THESE ARE COMMERCIAL GRADE

4 AMPS CONTINUOUS
$2.00
3mm DIA. X 4mm L with 2mm STEM







S/S 6volt Coil 6 VOLT COIL
GAS ENGINE IGNITION COIL
USE BALLAST RESISTOR FOR 12V

$45.00















Coil Kit 6 VOLT COIL KIT
All the items needed to build the 6 volt engine coil. After assembly you will need to encapsulate or at least seal the coil to protect it from any high voltage flash over. This is best done with Paraffin or Epoxy Resin. How you choose to seal your coil is up to you.
$30.00





TIM-6 KIT TIM-6 COIL DRIVER
USE WITH OUR 6V IGNITION COIL
$22.00
DELUXE TIM-6 KIT
$26.00
includes screw terminal block
ASSEMBLED TIM-6 BOARD
$40.00
DOES NOT INCLUDE IGNITION COIL



PICTIM KIT PICTIM IGBT COIL DRIVER
PIC MICROCONTROLLER
FOR CONTROLLED DWELL TIME
SYSTEM USES HALL SENSOR OR POINTS
INCLUDES BUZZ PIC CHIP
DOES NOT INCLUDE IGNITION COIL
KIT $40.00


PICTIM ASSEMBLED Fully assembled and tested with included Buzz PIC chip

$65.00







pictim coil combo
ASSEMBLED AND TESTED PICTIM AND 6 VOLT IGNITION COIL COMBO

$100.00











MISCELLANEOUS ITEMS


spark tester SPARK TESTER
SCALED DOWN VERSION
OF THE OLD B&S SPARK TESTER


$12.00







loctite
LOCTITE

STIK'N'SEAL
1 ounce

$4.00















m10 x1 Tap
M10 x 1mm bottom Tap
$8.00




10-40 Tap
#10-40 Tap
$10.00




1/4-32 Tap
1/4-32 Tap
$8.00




4-40 Tap
#4-40 Tap
$3.00




2-56 Tap
#2-56 Tap
$4.00





3mm carb
3mm Bore Carburetor
Stem OD = .275" - Stem ID = .127"
Stem Length = .187"
Carb has 1 mixture adjustments
and an Idle speed adjust
$25.00



5mm carb
5mm PERRY Carburetor
Stem OD = .355" - Stem ID = .222
Stem Length = .315"
Carb has 2 mixture adjustments
and an Idle speed adjust
$45.00

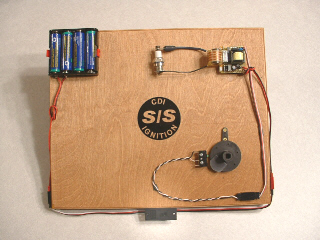

Replica Ford Model T buzz coil
BUZZ COIL BOX

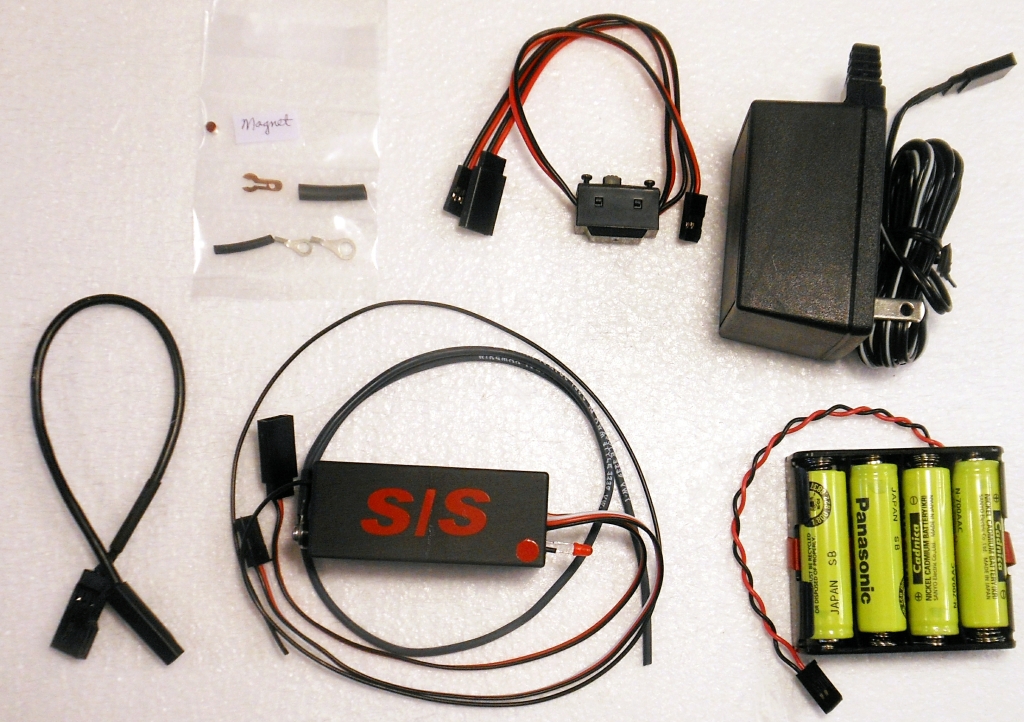

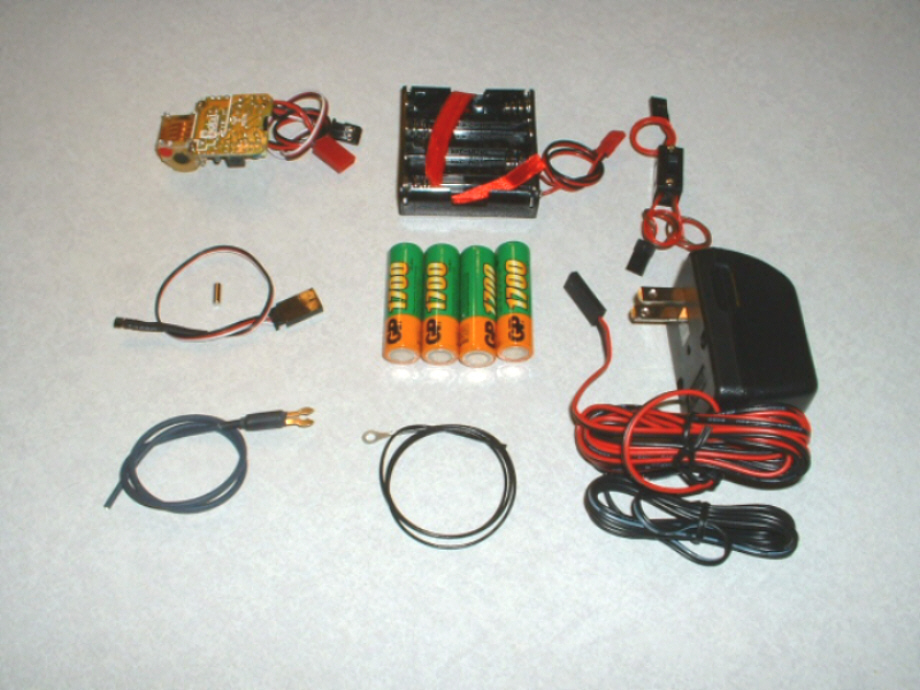

Complete CDI ignition system including
4 AA rechargable batteries, overnight wall charger,
18" spark plug wire with #4 ring terminal and spark plug clip, 18" ground and  contactor wire with ring terminals
(#4 to box and #6 to engine)
The wood box is made of Poplar and is the same
dimensions as the original buzz coil box

CLICK ON IMAGE TO SEE INCLUDED PARTS

$160.00


large buzz box
LARGE BUZZ COIL BOX
DIMENSIONS: 3 1/8" Wide X 5" Long X 2" High
Made from 1/4" thick Poplar wood
Accessory brass hardware package avilable
see order page
$25.00

large buzz box hardware
HARDWARE AND FITTINGS
FOR OUR LARGE WOOD BUZZ BOX
$10.00


buzz coil module

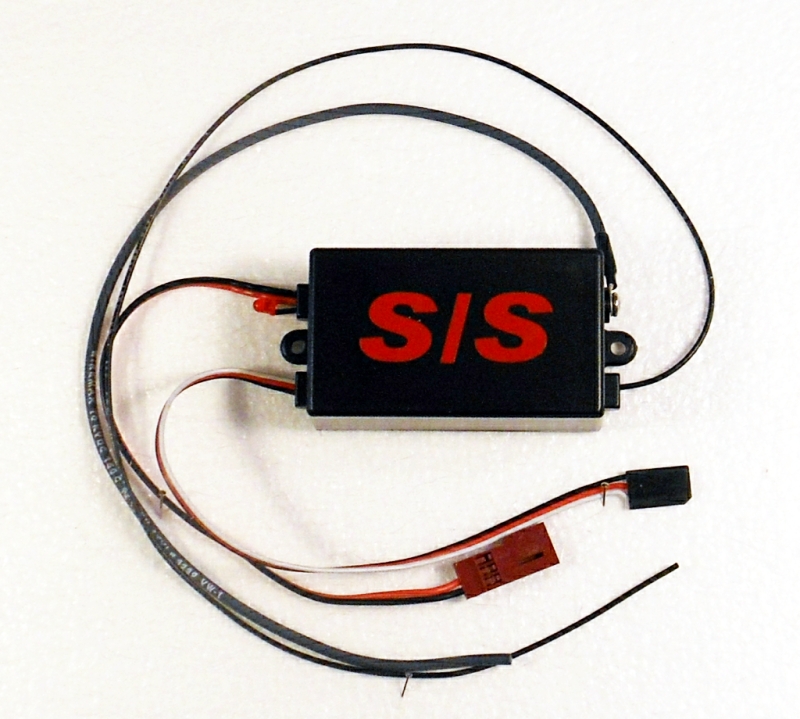

MULTI SPARK BUZZ COIL CDI
Basic CDI module with microprocessor board
100 sparks per second when triggered
by contactor, breaker points or hall sensor.
Includes 18" ground lead and 10 Kv spark plug wire
Buzz CDI includes RED LED timing light
The LED can be extended with optional extension assembly

Hall sensor or 2 wire connector sold seperately

$85.00

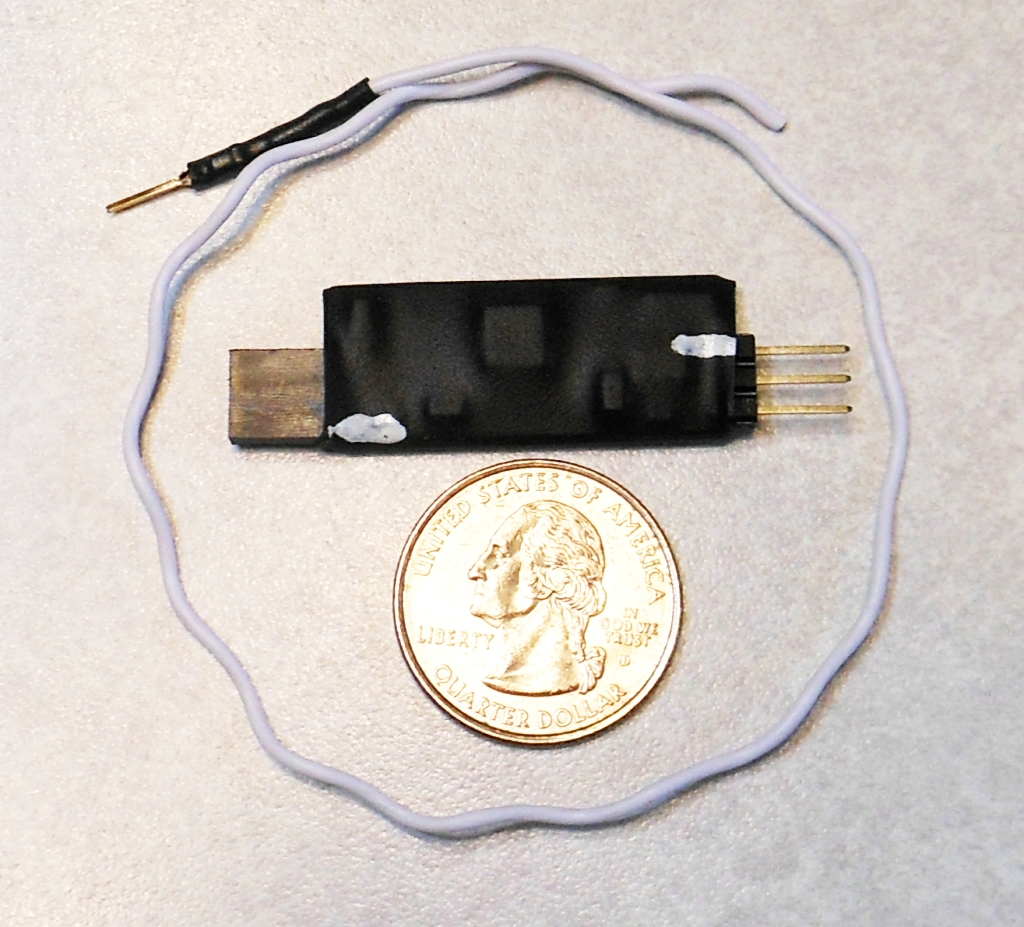

buzz coil module
MULTI SPARK BUZZ MODULE
Microprocessor board to convert our Single Spark CDI to function as a Buzz Coil CDI. The module comes with WHITE wire to connect to contact or points. The module will also operate using a hall sensor and magnet.
Hall sensor sold seperately

$20.00


switching regulator

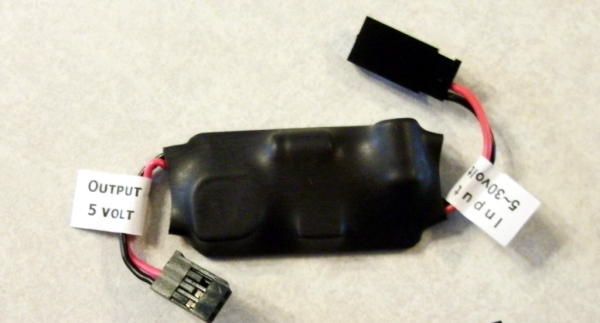

SWITCHING REGULATOR
Use with 6 to 12 volt battery to reduce the output voltage
to 5 Volts for CDI ignition modules.
INPUT IS POLARITY PROTECTED
Futaba output-also available with Futaba input
$20.00


silicone spark plug boot for 10mm cm-6 style plug
SILICONE SPARK PLUG BOOT FOR CM-6 SPARK PLUG
$5.00


1/4-32 silicone spark plug boot
SILICONE SPARK PLUG BOOT FOR 1/4-32 SPARK PLUG
$6.00


molded silicone spark plug boot
SILICONE SPARK PLUG BOOT AND WIRE ASSEMBLY

$9.00-$10.00

Rimfire Z series spark plugs - Use 10-40 boot/wire assembly - 1 foot of 5Kv wire
All 1/4-32 spark plugs - Use 1/4-32 boot/wire assembly - 1 foot of 10Kv wire
Rimfire V spark plug - Use 3/8-24 boot/wire assembly - 1 foot of 20Kv wire
CM6 - 10mm spark plug - Use CM6 boot/wire assembly - 1 foot of 20Kv wire

We can mold custom lengths. If you order a boot/wire assembly plus additional spark plug wire of the same size we can mold a boot/wire assembly that length. Please emial us to let us know the final wire length if ordering more than 1 boot/wire assembly.

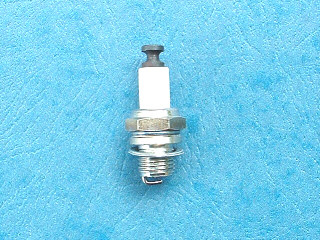

10mm CM6 Type Spark Plug
This is the Rcexl manufactured spark plug
It IS NOT an NGK CM-6 spark plug


The Rcexl CM6 spark plug is an excellent replacement.

Made in China Rcexl CM6
10mm Spark Plug
$5.00


1/4-32 made in china spark plug
1/4-32 thread spark plug - made in China
$14.00

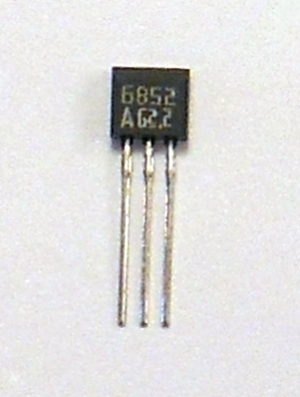

dn6852

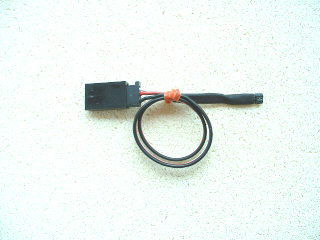

Hall Sensor

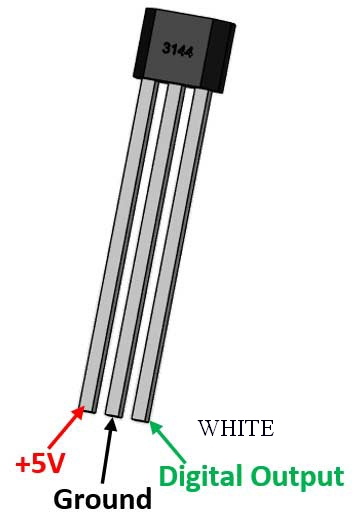

Click on image for pin out
$1.00

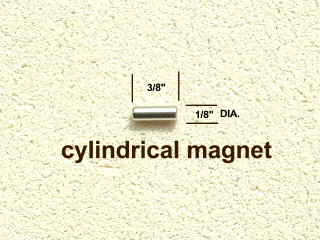

1/8" dia by 3/8" long magnet
1/16" to 1/4" diameter
1/16" to 3/8" long
$1.00


battery and hall switch wires
FUTABA CONNECTORS WITH 8" WIRES
RED connectors are for Battery
BLACK connectors are for Hall Switch
$2.50each

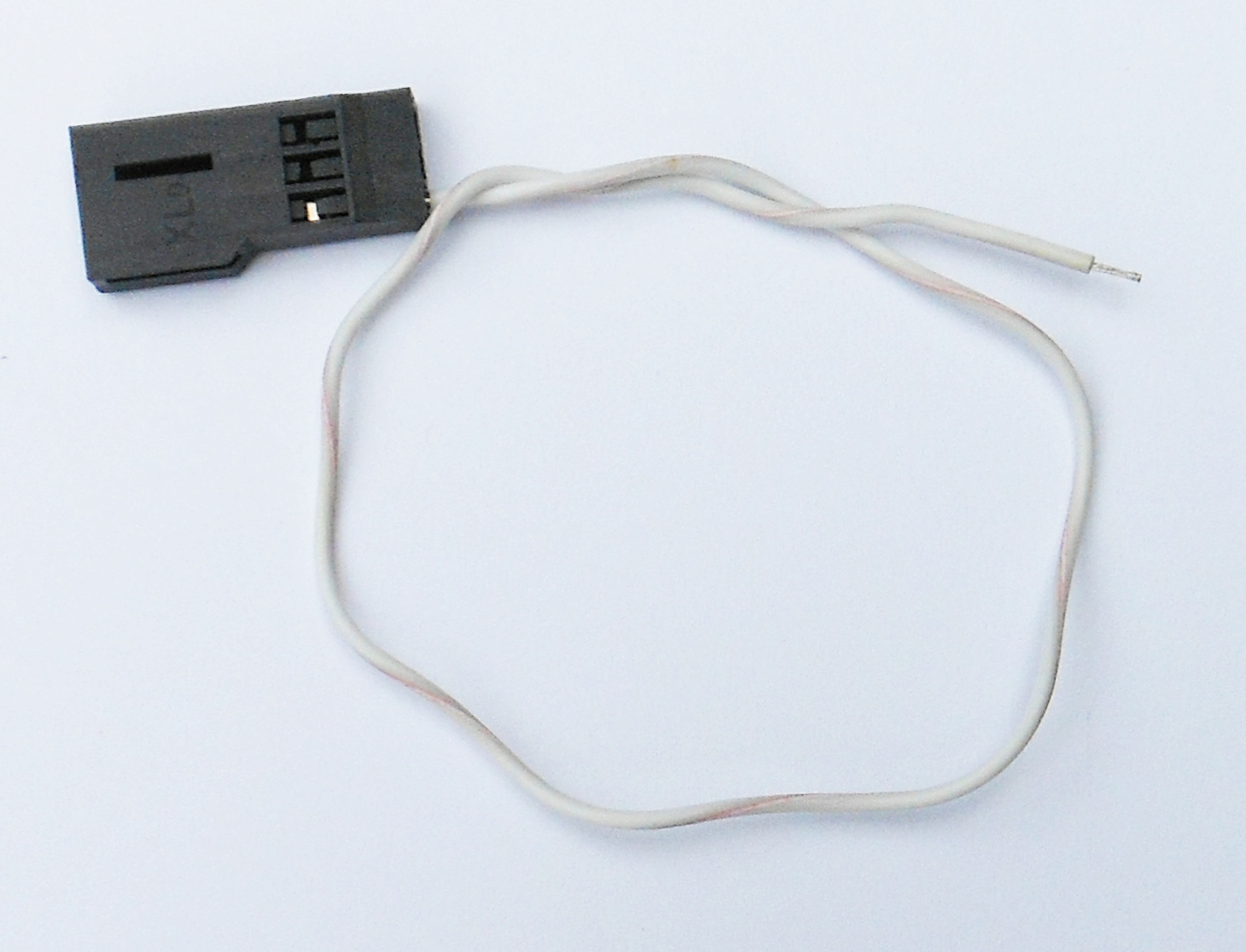

CDI board trigger connector
1 WIRE FUTABA CONNECTOR
Used with BASIC CDI and MULTI SPARK CDI SYSTEMS
Connects points or contactor to hall sensor connector
$2.50


SERVO WIRE EXTENSION FOR HALL SENSOR
FUTABA 3 WIRE SERVO CONNECTOR

From $3.00 to $4.00 each
1 MALE AND 1 FEMALE CONNECTOR
3-6-12-18-24 INCH LENGTHS AVAILABLE








led extension Extension LED for new style CDI
$5.00

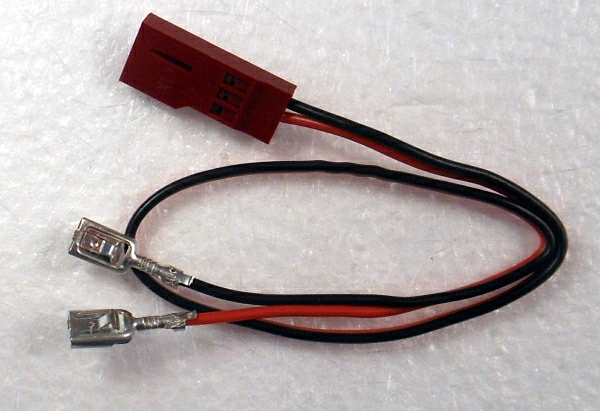

battery wire Futaba to 3/16" spade terminals
$5.00










SLIDE SWITCH ON OFF SWITCH
WITH CHARGE LEAD

FUTABA CONNECTORS


$8.00
MUST BE IN OFF POSITION TO CHARGE

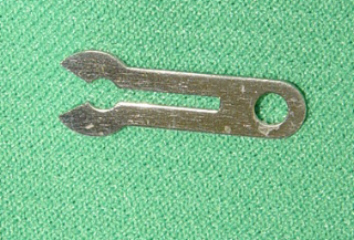

HV clip for 1/4-32 and 10mm spark plugs
SPARK PLUG CLIPS - LARGE - MEDIUM - SMALL
$2.50, $1.75, $1.50







Click on Image for RIMFIRE spark plug chart
RIMFIRE SPARK PLUGS
RIMFIRE SPARK PLUGS
TOP ROW - V Series Plugs
BOTTOM ROW - VIPER - Z series Plugs
FROM $23.00 to $25.00 each
















AA size NiCad battery set
700 ma AA NiCad BATTERY
$3.50 each
$12.00 SET of 4










WALL CHARGER
110V WALL CHARGER
FUTABA CONNECTOR

$15.00

US PLUG ONLY
OUTPUT=5.5V AT 300ma




BATTERY BOXES LISTED BELOW ARE ALSO AVAILABLE WITH TINNED LEADS

SEE ORDER PAGE

3 aa holder 3X1
FLAT AA HOLDER
3 CELLS

$6.00





4 aa holder
4X1
FLAT AA HOLDER
4 CELLS

$6.00





4 aaa holder 4X1
FLAT AAA HOLDER
4 CELLS

$6.00



dvm
DIGITAL VOLTAGE
INDICATOR

$5.00
Also available with Futaba connector

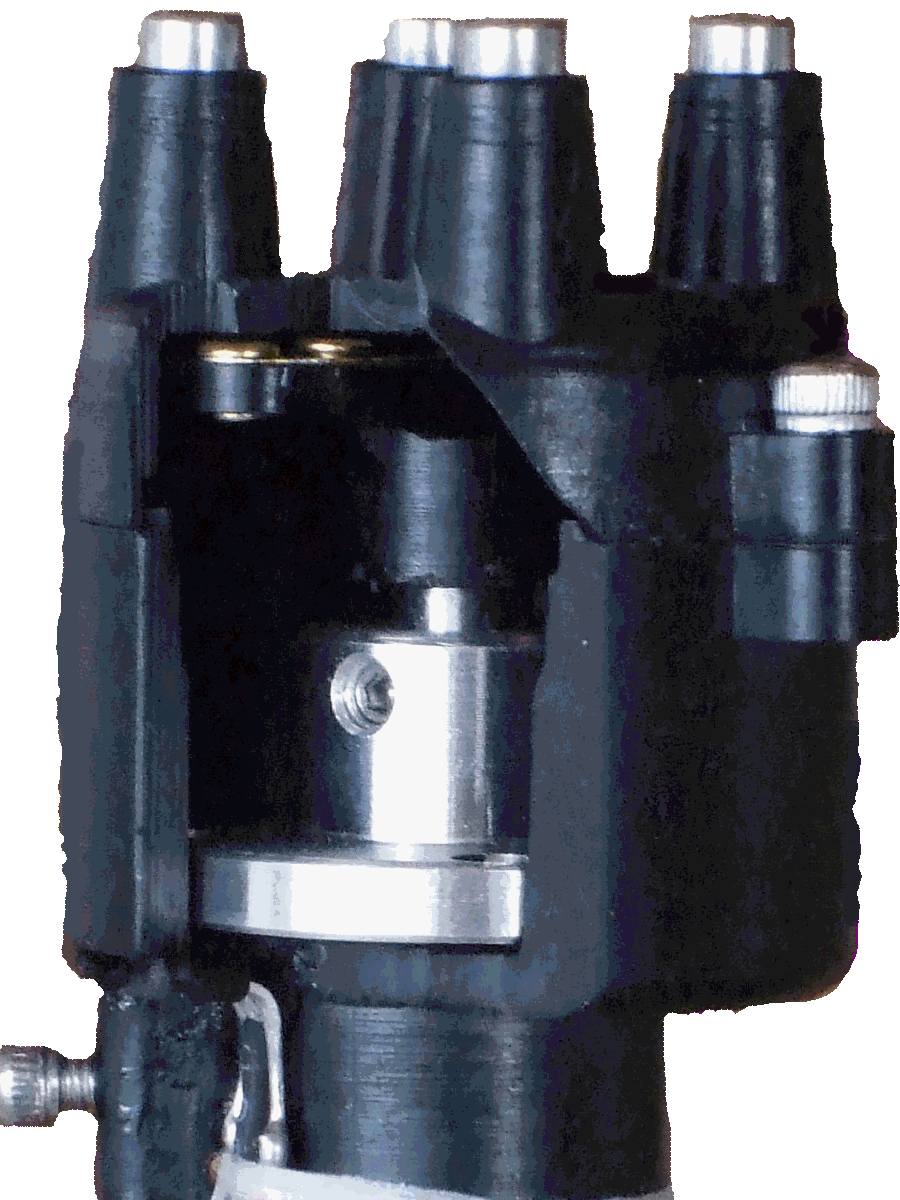

Morton M5 Distributor

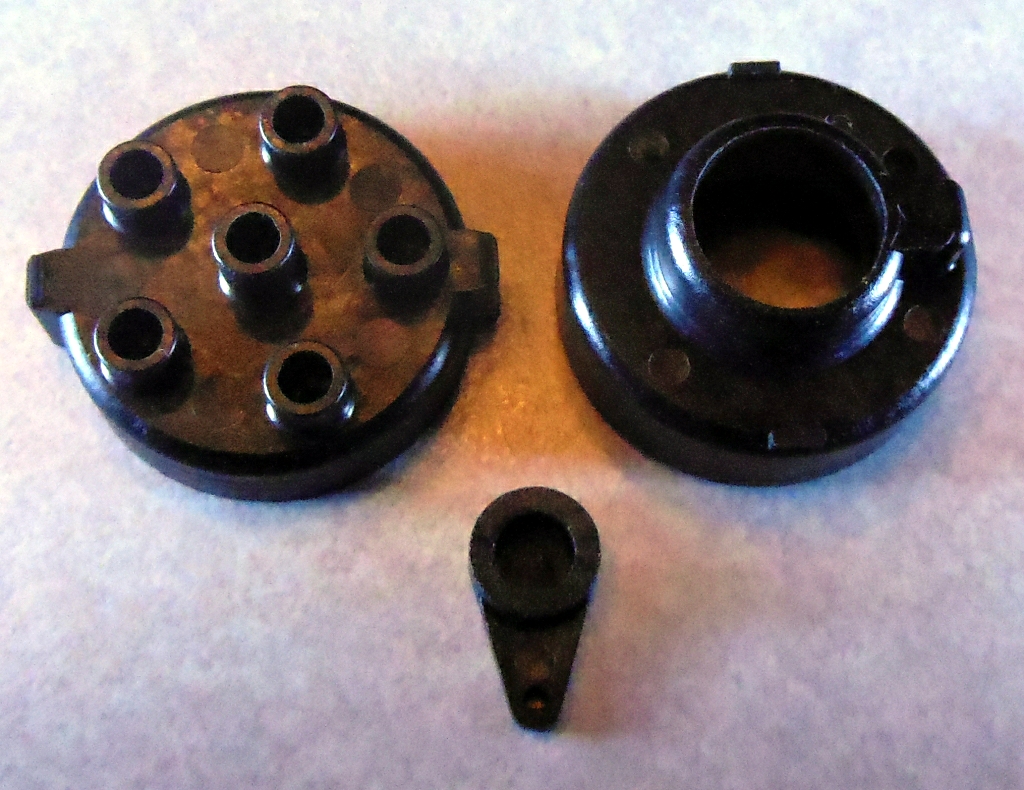

MORTON M5 DISTRIBUTOR
This is the base, cap, and rotor assembly based on the 1945 Morton M5 Drawings.
These parts do not include any secondary machine work.
All secondary machine work is the resposibility of the purchaser.

$35.00
